Black DTMF Decoding Algorithm
Decoding DTMF tones on the minimum PIC hardware - a new algorithm.
Roman Black - 5th March 2011.

Note!! This page is about decoding DTMF. If instead you want to generate DTMF I have a nice sinewave DTMF generator algorithm in C code you can see here.


DTMF

DTMF is Dual Tone Multi Frequency, (or "Touchtone") these are the sounds made by telephones to dial a number. Each DTMF sound is made by two frequencies which are mixed together.





Standard DTMF encoding

DTMF decoding normally uses a specialty IC that receives the DTMF waveform and "decodes" it to one of the 16 possible outputs, usually as a 4bit binary output. These IC's are hard to get for hobby and project use, and can be expensive in small quantities, and require extra components including a 3.79MHz xtal.

DTMF decoding can be done in software on a high power microcontroller or DSP micro using FFT (Fast Fourier Transform).

DTMF decoding can be done reasonably well in software using mid power micros using a modified Goertzel's algorithm or a similar form of DFT (Direct Fourier Transform) but this still requires a decent amount of processing power, ROM for the sin/cos tables and the process is complex and not very versatile.




My DTMF decoding algorithm

I decided to try a totally different approach. Rather than use a math system like Goertzel or DFT and then try to squeeze it into a tiny low-cost PIC, I would start with the small PIC then try different techniques which are each optimised for the strengths of the small PIC and hopefully combine the techniques to work synergistically to get a "good enough" finished result that will decode DTMF reasonably reliably with simple and tunable code.

Capitalising on the strengths of a small PIC meant starting with the things it could do well;
1. Internal comparator; good zero-crossing detection
2. Since the PIC has a xtal; accurate period measurement

And well, that's about it. :)

I made up some standard DTMF waveforms in a spreadsheet program, and analysed the waveforms. These waveforms have zero "twist" which means the high DTMF tone and the low DTMF tone have the same amplitude. This is a reasonable enough representation of the received DTMF tone from a telephone line. The minimal hardware dictated that the DTMF waveform would simply be AC coupled to the PIC comparator input pin through a capacitor, to make a zero crossing detector. This produces a simple ON-OFF signal or "1 bit DAC".

If this was going to be possible using period measurement I needed a way to reduce the period triggering to the most secure parts of the waveform, which was done creating the "HI-LO debounce system" that is very good at removing zero-cross noise and high frequency mis-triggering and produces reliable periods, synchronised to the DTMF waveform.

The HI-LO debounce system detects the more reliable parts of the DTMF wave, the major peaks and troughs. This is done by cyclic testing using a debounce feature;
1. Wait until it detects a 220uS period that is at least 90% high (sampled every 5 uS)
2. Grab the timer value (used to capture a period)
3. Wait until it detects a 220uS period that is at least 90% low (sampled every 5 uS)
4. (repeat)




As you can see above, this seems to work quite well in theory, it eliminates the noise and high frequencies and zero-cross fluff very well, and seems to capture the major periods fairly reliably. It also reduces the need for external hardware as it provides a significant filtering effect by software alone.

This debounce feature works synergistically to be more than just a period measurement, because it is only triggered on a certain characteristics of the DTMF waveform it perfoms a crude pattern recogniton too, as you can see it triggers only in response to certain major peaks. This will be very useful later.

Another benefit of this system is that unlike Goertzel or DFT this is not limited to any specific frequency, so the same hardware and code can just as easily detect the dial tone, ring tone, or ringback tones etc, and can detect a single tone if needed or dual tones, all of which may be of benefit in a PIC telephone application.


Analysing the periods - ideas?

Since these periods looked reliable (in theory) and are closely correlated to the frequencies of the 2 sinewaves in the DTMF waveform, the next step was to see if a small PIC could somehow analyse the periods to deduce the DTMF tones.

Fortunately these periods are fairly long, from 800 to 1600 uS (a synergistic benefit of the HI-LO debounce system) so there is plenty of time even on a small PIC to do some processing or testing between each period capture.

The obvious thing would be to test the frequency spectrum, (period spectrum?) for the most popular periods that are detected and see if these periods can be directly used to indicate the DTMF frequencies. For convenience, instead of trying to detect the 2 separate sine frequencies it would be simpler to test for a "match" to each one of the 16 DTMF combinations and it's particular signature.

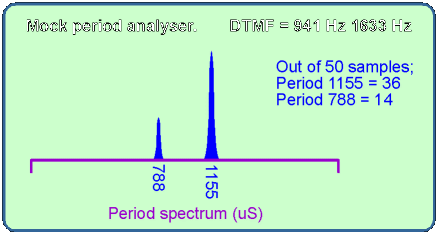

The DTMF 941 1633 example from above produces a lot of periods of about 1155 uS and some periods of about 788 uS, and not much of anything else. In fact there are about 5 of the longer periods for every 2 of the shorter periods. So for 50 periods tested, the spectrum analyser should look something like this;





Testing it in real world hardware

First I made a spectrum analyser, this was actually easier than it sounds. I used my trusty MikroElektronika SmartGLCD and wrote some code so it can capture periods on the PIC comparator input using the zero-cross HI-LO debounce system I designed above. This enabled testing of the actual comparator system as well as just being a period spectrum analyser.

I simplified the HI-LO debounce by just checking for 200uS continuous HI and 200uS continuous LO to trigger each cycle. The DTMF was generated by another PIC using my PIC dual sine accurate DTMF generator (see link at page top). The systems were linked by a 3k trimpot to adjust the DTMF waveform amplitude and a 0.1uF AC coupling cap. A very crude and simple hardware setup.

The software is quite simple; it measures 50 consecutive "debounced" periods, records them as 50 entries in ram, and then draws them on a bar chart where each period is drawn as 1 pixel high on the bar. Only 128 bars were used, keeping it simple as this will be ported to a small PIC 12F or 16F later.




I really didn't expect this good a result, but it worked perfectly. :)

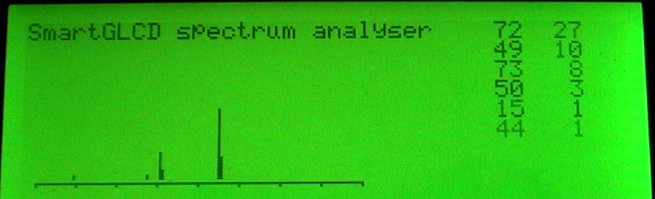

Using the simplest period measurement possible, the PIC TMR0 was set to 16uS per timer tick. So the period of 72 shown above = 72 x 16uS = 1152uS. On the right of the bargraph is shown the 6 most common periods, ranked vertically.

It matches the expected result very well, although each period may be +/- 1 count because of the crude resolution used to measure period. (In reality it tested significantly better than +/- 1 count). The most common period was detected as period 72 and 73, with a total number of samples of 27+8 = 35 samples. The next period was detected as 49 and 50 with total samples of 10+3 = 13. Then there are a couple of defective samples, due to noise etc.

This result almost perfectly matches the math model generated in the spreadsheet as the original concept waveform! That predicted 36 and 14 samples for the two main frequencies, the actual hardware produced 35 and 13.

I set the spectrum analyser to continuously log and display, and turned the DTMF waveform amplitude up and down. The result was always good, with DTMF waveforms ranging from 2.6v p/p (the max) down to about 0.4v p/p and all amplitudes gave a very similar result on the spectrum analyser. This was excellent!




Can this simple period data decode the DTMF?

The periods shown below are from my testing in hardware. A period of 100 = 1600uS. Percentages are approximate but seemed reasonably reliable over many sample iterations and different DTMF waveform amplitudes. I have guesstimated fractional periods based on the appearance of the spectrum analyser bars. The time taken to get 50 period samples is somewhere in the 40 to 70 mS range.
DTMF pair     per1   %     per2   %
697 1209      98    56     66    30
770 1209      63.3  46     94    44
852 1209      60.7  65     90.4  35
941 1209      58.1  70     86.5  26

697 1336      92    74     62     5 ?
770 1336      88.7  66     60    26
852 1336      85    52     57.6  40
941 1336      55    56     82    42

697 1477      86    80    114     6 ?
770 1477      83    88
852 1477      80    72     54    26
941 1477      76.9  54     52.1  42

697 1633      80.7  66    106.3  32
770 1633      78    86    102.5  12
852 1633      75    90
941 1633      72.2  72     49.3  26

The figures above were quite reliable, with a fixed frequency source (my xtal locked DTMF sine generator) the periods remained within about 0.3% from test to test. Much less than 1 bar period error on the bargraph. The percentages of the 2 main periods also remained reliable, within 4% and generally better.

How to decode it?
If the DTMF generator frequencies were quite exact (say < 0.5% freq error) this would be as easy as using the most common (primary) period. The two closest periods are 85 and 86 so they are separated by 1.1% difference in period. That would already be a workable DTMF decoder, but relies on having a good DTMF generator.

The DTMF spec requires that the decoder will accept generated DTMF up to +/- 1.5% freq error. Usually the real life DTMF is made by dedicated DTMF generator ICs, and although these are xtal locked their frequencies are approximate and according to some popular IC datasheets the frequencies are normally within 0.3% or so, with an occasional error as large as 0.7%. So for general use it won't be accurate enough just using the one primary period for testing although it does come close.

The good news is that it has been extremely easy to get this data, consisting only of a simple comparator, software debounce, and recording 50 consecutive periods.




Can this meet DTMF decoder requirements?

The period data from 50 period samples contains more data than just the most common (primary) period. It might be possible to make use of the other data to improve the decoder spec.

As an example, for these two DTMF "worst case" tones;
Tone"8" 852 1336      85    52%     57.6  40%
Tone"3" 697 1477      86    80%    114     6%
If both use a wider period match, like accepting +/- 1.5% freq error each period filter will be;
(85) 83.7 to 86.3
(86) 84.7 to 87.3
So there will be a significant overlap and both primary periods (85 and 86) will be detected.

But the other data can be processed, as with DTMF Tone"8" the 85 period occurs only 52% of the time and has a second period of 57.6 that occurs 40% of the time. Where the DTMF Tone"3" has period 86 very dominant at 80% and its second period is 114 and occurs only 6% of the time.

It can use a weighted points system that allocates points for each detected period;
if(period is 83 to 87); Tone"8" += 1 and Tone"3" += 1
if(period is 56 to 59); Tone"3" += 4
if(period is 112 to 116); Tone"3" += 20

Those figures were just chosen arbitrarily. For 100 tested periods from each Tone, the points result would be;

Actual DTMF Tone"8"
Tone"8" points = 52*1 + 40*4 = 212
Tone"3" points = 52*1 + 0*20 = 52

Actual DTMF Tone"3"
Tone"8" points = 80*1 + 0*4 = 80
Tone"3" points = 80*1 + 6*20 = 200

So in the case of those two DTMF tone examples, even though the primary periods were both indistinguishable (85 and 86) there was enough difference in the weighted points that were allocated to clearly identify each DTMF tone and meet the required spec for +/- 1.5% frequency deviation in all the tested periods.




A practical DTMF decoder?

Given that we can very easily collect the periods on a small PIC and can very easily add weighted points values into 16 "Tone accumulators" for each period we get, this should be a workable DTMF decoder system.

My first practical decoder seems to work ok and uses this system;
1. HI-LO debounce of 220uS continuous state
2. Record 30 consecutive periods, as bytes, using TMR0 with resolution 16uS
3. Count the periods and allocate weighted points into 16 byte result accumulators
4. The accumulator with the highest number is the DTMF Tone, but only if;
5. that number is within a "safe window" to eliminate non-DTMF signals

Sampling only 30 periods takes under 45 mS and complies good enough with the standard minimum DTMF tone length of 51mS. The decoder seems to work well enough to find the highest points to match the DTMF Tone, but a "window" is needed to reject non-DTMF signals like solid tones and complex tones (like voice).

Note! I recorded the 30 periods into RAM, then did post-processing to allocate the weighted points. This was done because I also wanted to chart the results and needed to record them. For a practical decoder the recording is not needed, it can analyse each period easily in real time and only needs the 16 RAM bytes for the result accumulators.


Results of testing;
The numbers on the right of the display show the 16 result accumulators.


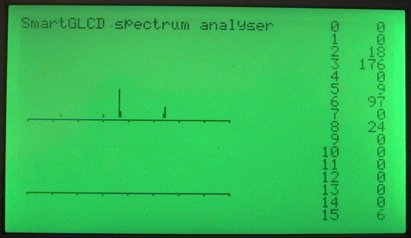

Above is an example of what most of the tones look like, there is a clear winner, in this case it is Tone 10 (852 1477).



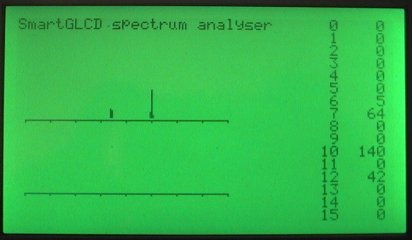

Tone 3 (941 1209) shows a clear winner. Again this is pretty typical.

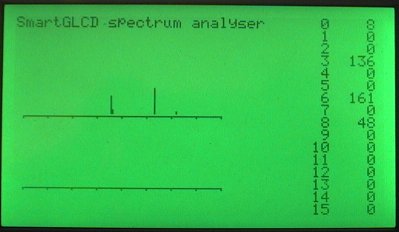

Tone 6 (852 1336) is one of the worst cases, it's reliable enough but there is not a very large safety margin.

Here are the weighted points values I used for the different periods; DTMF_simple_points.c

This is looking promising. Although it is not fully practical, this simple decoder uses no input hardware, very litle ROM, only TMR0 set to a low 16uS resolution, very little RAM, no interrupts, and only needs a slow PIC (assuming it does the weighted points in real time after each period capture). And it gives a working decode from as little as 30 periods (under 45 mS).

It's not a great decoder but it's working and would be possible even on a 4MHz PIC 10F, 12F or 16F, ie the bottom end PICs!




Decoder version 2 - a major improvement

The simple decoder above is basically just a crude spectrum analyser. All its decoding is based on the number of periods that fall within specific zones, and it JUST has enough information to decode the 16 DTMF Tones.

It occurred to me when making the top waveform diagram on this page that my HI-LO debounce actually performs a crude pattern recognition task as it will only synchronise to certain characteristics of the DTMF waveform. But the benefits of this pattern recognition are largely wasted as the simple decoder above makes no use of the order the periods are in, only the amount of each period.

So if the decoder could evaluate the order that the periods were captured in it would provide a lot more data to improve the separation between detecting individual DTMF Tones, and also improve the noise rejection so the decoder can more easily eliminate non-DTMF sounds.


How would this extra pattern recognition work?

Below are the two DTMF tone waveforms that the simple decoder was having some difficulty separating. The captured periods (in purple) are almost identical on each DTMF tone. It was separating the two tones based on the fact that Tone 3 has a lot more of the shorter periods than the longer period, a ratio of about 5:2. Where Tone 6 has different numbers of the shorter and longer periods, a ratio of about 3:4.




Above in Tone 3 you can see the new data, with some "double" periods drawn in orange and brown. These demonstrate the most basic pattern that is present; the 2 consecutive periods.

If we call the short period S and the long period L, most double periods consist of an SL pair with SS pairs too. The frequency of the patterns in Tone 3 is; SL/LS=4, SS=3, LL=0.




Above in Tone 6 the period pairs look very different! They are mostly SL pairs with one LL pair, the pair frequency is; SL/LS=6, SS=0, LL=1.


Making the best of the pattern data

Some system of allocating weighted points for each pattern that appears would quickly identify each DTMF tone signature. However if the points are based mainly on the SL pairs these will be common to more than one tone (see Tone 3 and Tone 6 example above), and also if points are allocated for SS and LL pairs this will compromise the rejection of single frequencies like SSSSSS and LLLLLL.

The first solution I tried was to allocate points for tiplets. Triplets like SSL, LSS will be extremely common in Tone 3, but never appear in Tone 6 which will be full of LSL, SLL and LLS pairs that never appear in Tone 3.

Itentifying triplets can be done extremely fast and efficiently in real time as each new period is captured. It only needs 32 captured periods to make 30 triplets in real time. It should be possible to add weighted points for "good" triplets and maybe subtract weighted points for "bad" triplets. This will give excellent separation between DTMF tone signatures and provide very high rejection of non-DTMF sound and single frequencies.

I built a DTMF period triplet analyser;
This uses the same hardware as the spectrum analyser, and really it is a triplet sepctrum analyser. It identifies the DTMF tone, then records 1002 periods (1000 triplets) which are then displayed to show how popular the Short and Long periods are, and then the 8 possible triplets.

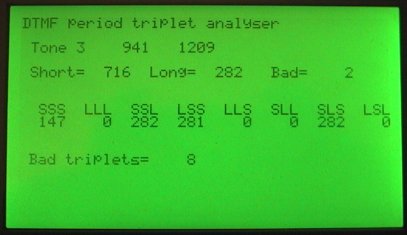

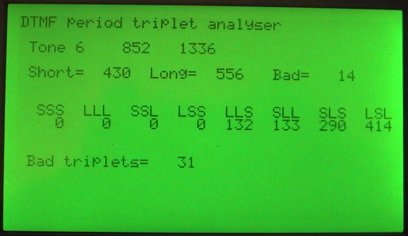

Here are the triplet analysis results for Tone 3 and Tone 6, the triplets are exactly as predicted by the theory waveform. This is data for 1000 triplets.




Here is data from hardware testing 1000 triplets for each DTMF Tone. It shows periods as Short/Long periods, and shows the most common triplets by percentage;
Tone DTMF pair    Short  %    Long   %     SSS  LLL  SSL  LSS  LLS  SLL  SLS  LSL    BAD
 0   697 1209     66    29    98    57            9             19   19        20     32
 1   770 1209     63.3  43    94    49                          10   10   27   32     19
 2   852 1209     60.7  58    90.4  39                16   16             39   22      8
 3   941 1209     58.1  71    86.5  28      14        28   28             28           1

 4   697 1336     62    10    92    77      53                   7    7         4     23
 5   770 1336     60    27    88.7  66           16             23   23        23     13
 6   852 1336     57.6  43    85    56                          13   13   29   42      3
 7   941 1336     55    58    82    42                16   16             42   26      1

 8   697 1477     86    84   114     9      58        10   10             10          11
 9   770 1477     56.8   8    83    91           75              8    8         8      1
10   852 1477     54    26    80    73           20             26   26        26      1
11   941 1477     52.1  43    76.9  57                          14   14   29   43      1
The triplet pattern recognition seems very reliable! Surprisingly, I did not see one false positive triplet even after many tests.

The only DTMF tones that may cause issues are Tones 4, 8 and 9, these have a very low incidence of one period.




The Black DTMF triplet decoder

Basics;
1. the debounce system produces 2 distinct periods from any DTMF waveform
2. these 24 specific periods are detected with narrow windows (very high rejection)
3. a "triplet" of the last 3 periods is checked for a match
4. if it matches, it allocates points scores for the 12 DTMF signatures

The algorithm procedure;
1. HI-LO debouncing on the input signal, both must be stable for 220uS
2. Capture the period using TMR0 with resolution 16uS
3. See if that period matches one of the 24 periods in the table,
4. if so, test for a valid triplet and allocate weighted points
5. Repeat 1-4 until 30 triplets have been tested
6. The accumulator with the highest score is the DTMF Tone!
7. (That highest number can be further checked within a window if needed)

Triplet weighted points
The triplets that match a DTMF tone will cause points to be added to the accumulator for that DTMF tone. If a tone is perfect (like in testing above) the points should equal about 150 but they should never be high enough to roll the variable, ie they will always be under 256.

Practical testing
I coded the new DTMF triplet algorithm into the same hardware. It still displays the spectrum analysis of the periods (like the first algorithm) but this is not used for the decoding. Now it uses the period triplet decoding. Some results are shown below.




Tone 3 and Tone 5 are shown.




The display shows the spectrum chart of the 30 period samples, then text showing the periods and the number of periods, and on the right it shows the 12 DTMF points scores.

All 12 DTMF signatures have extremely high separation as seen in the two examples above. Even from a short 45mS sample time, with as little as 32 periods (30 triplets) it looks to be a solid reliable DTMF detection. The particular triplets I chose for the tests have both a Short and Long period so this new decoder is completely immune to being triggered from a single frequency tone.

Here is the crude system I used for decoding triplets into weighted points; DTMF_decode_triplet_points.c




Using the decoder

This decoder will run on extremely limited hardware and has the benefit of having very high rejection of non-DTMF waveforms. It is also very open-ended and can be optimised to detect a single DTMF tone (or just a couple of DTMF tones) to save code space. Both these features can make it ideal for a cheap DTMF remote control type receiver, or adding that type of function to a small PIC project.

It also forms a companion to my DTMF dual sine generator PIC code, so it provides the ability to use a couple of low-end PICs to do both the DTMF generation and decoding without needing specialty chips.

The strong period filters and pattern recognition should mean that this system will outperform standard analog DTMF decoder ICs and Goertzel systems for rejection of non-DTMF waveforms (ie remote control use), but they will be superior to it for accepting DTMF in a very noisy environment. If needed, my system can be made more noise tolerant with a larger sample sizes, and a little more processing.


Optimising the decoder

HI-LO debounce time. This needs to be right around 220uS for best triggering from the DTMF waveform. Also test very often within the 220uS, I used 5uS samples. If this is done right the decoder will detect 2 very dominant periods from any DTMF tone, as seen in examples above.

Period filtering. I used +/- 1 count, so if the period was 80 it would detect 79-81 and reject everything else. This gives a very high rejection of non-DTMF signals. You can go to +/-2 or even more if needed which improves detection in a noisy environment. Just watch for overlap as some tones use similar triplets so they should not be allowed to overlap period filter windows.

Triplet analysing for pattern recognition. You probably don't need to adjust these, my code gives good performance by picking the right triplets to match for each DTMF signature and I have tuned the weighted points for a sample size of 30 triplets, so that's done.

Testing the points result. All you need to do here is find the highest score out of the 12 results, and check it is >X. For my code above >50 would work well.




A working decoder in a PIC 12F675!

As a proof of concept here is a complete project, it is a DTMF remote control decoder using a PIC 12F675 and 8MHz xtal. It would also work with a 4MHz xtal if you change TMR0 to 1:8 prescale. A xtal is recommended as the internal 4MHz osc may not maintain a good enough frequency reference.

Hardware
It receives DTMF audio into pin GP1 (comparator input) and needs a 0.1uF to 1uF input cap (AC coupling cap). It also needs a 4k7 or 10k resistor from GP1 to ground. That's about it, it works fine with DTMF amplitude from about 0.4v peak to peak to over 2v peak to peak.

This DTMF decoder uses 25 RAM (and the C stack) and 318 ROM. If you need to decode all 12 DTMF tones it will fit in this PICs 1k ROM but you need to reduce or remove the make_beeps() function. I have not tried to shrink any of the code, as that should be quite possible.

Operation
All the PIC does is continually test the incoming signal in groups of 60 periods (60 triplets) which takes about 95mS for each group. The triplet decoding and points allocating is done in real time after each period capture and there is plenty of time even on this little PIC.

Two DTMF tones can be detected;
Tone 0 (the phone "1" key) = set output GP0 HI
Tone 7 (the phone "0" key) = set output GP0 LO

Also, after the GPO output has been changed the PIC makes one or two "beeps" confirmation on GP2, these beeps can be to a LED or a speaker to tell the user the signal has been received.

The project will decode any or all of the 12 DTMF tones, but the 10 tones not used are commented out to save ROM and processing time.

It worked very well in testing, and should work for you too provided the DTMF waveform is reasonably clean. If you have dirty DTMF waveform you can clean it up a lot by adding a RC low-pass filter of 1k5 and 0.033uF or 2 filters of 1k2 and 0.033uF. But this should not be needed in most cases as the algorithm itself will tolerate a decent amount of noise. The extra filter will be most useful for radio apps that may have hiss on the signal.

An obvious use for this would be as a remote receiver connected to a radio or other audio system, to turn something on or off with a DTMF tone. Likewise it could be used as a phone remote to turn something on-off at home when you ring home from work. However you must check the legality of connecting equipment to the phone line (it can be illegal in some areas) and of course check for the spec and safety of the way you connect the electronics to the phone line. There is a lot of info on the internet.


Here is the MikroC source code for the PIC 16F675;   DTMF_remote.c

Here is the HEX file if you just want to program a PIC;   DTMF_remote.hex




- end -
